How to Size a GPU Cluster for LLM Training

Learn how to calculate the right number of GPUs, memory, and networking for training large language models efficiently.

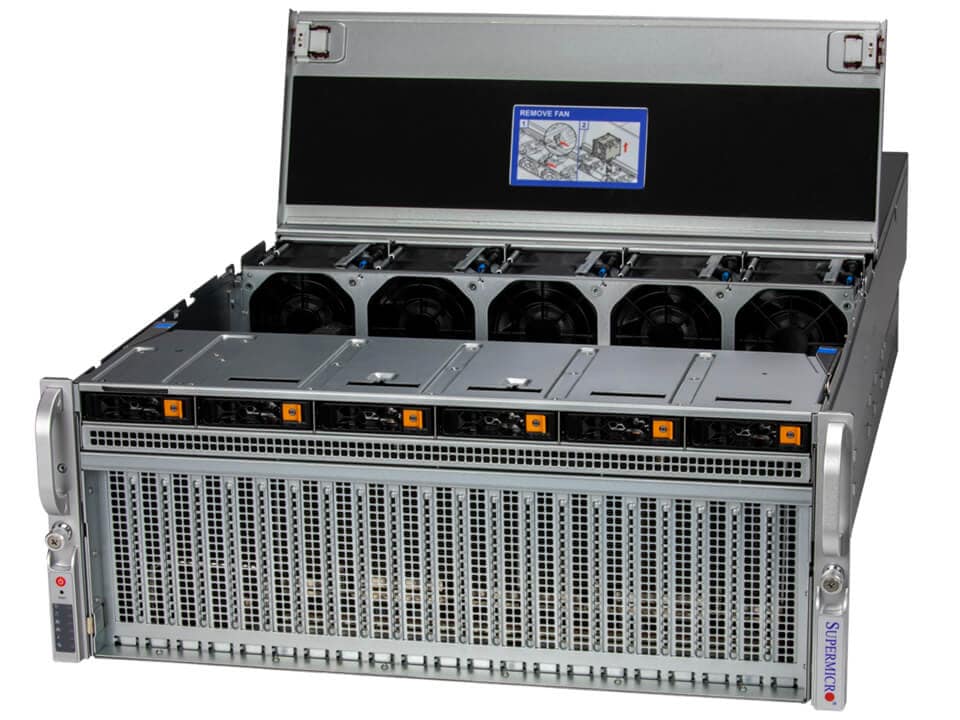

GPU cluster sizing - Supermicro liquid cooled rack

So you're building an LLM. Congrats! Now comes the hard part: figuring out how many GPUs you actually need.

Too few? Your training crawls. Too many? You're burning cash on idle silicon. Let's do the math and get this right.

The Quick Formula (For the Impatient)

Minimum GPUs needed:

GPUs = (Model Parameters × 4 bytes × 1.2) / GPU Memory

Training Time Estimate:

Days = (Tokens × Parameters × 6) / (GPUs × TFLOPS × 86400 × Efficiency)

Where efficiency is ~0.3-0.5 for real workloads.

Example: Llama 3 70B on 1T tokens

  • Minimum GPUs: (70B × 4 × 1.2) / 80GB = 4.2 GPUs → Use 8
  • Training time: (1T × 70B × 6) / (8 × 989 × 86400 × 0.4) = 152 days

Scared yet? Let's optimize this.

Step 1: Calculate Model Memory Requirements

Base Model Size

Your model's memory footprint in mixed-precision training:

ComponentMemory Formula
Model weightsParameters × 4 bytes (FP32)
GradientsParameters × 4 bytes
Optimizer states (Adam)Parameters × 8 bytes
Total per GPUParameters × 16 bytes

Example - Llama 3 70B:

  • 70B parameters × 16 bytes = 1,120 GB
  • With H100 80GB: Need 14 GPUs minimum

Add Overhead (20-30%)

Real training needs:

  • Activation memory (depends on batch size)
  • Communication buffers (for multi-GPU)
  • Framework overhead (PyTorch/JAX)

Rule of thumb: Add 20-30% to your calculation.

Llama 3 70B adjusted: 1,120 GB × 1.25 = 1,400 GB → 18 GPUs (H100 80GB)

Step 2: Choose Your Parallelism Strategy

Data Parallelism (DP)

  • Same model on every GPU
  • Different batch on each GPU
  • When to use: Model fits in 1 GPU
  • Scaling: Linear up to 8-16 GPUs

Tensor Parallelism (TP)

  • Split model layers across GPUs
  • High bandwidth required (NVLink)
  • When to use: Model doesn't fit in 1 GPU
  • Scaling: 2-8 GPUs max (communication bottleneck)

Pipeline Parallelism (PP)

  • Split model vertically (layers → GPUs)
  • Less communication than TP
  • When to use: Very large models
  • Scaling: 8-64 GPUs

FSDP (Fully Sharded Data Parallel)

  • Meta's secret sauce for Llama
  • Shards model, gradients, optimizer across GPUs
  • When to use: Modern default for LLM training
  • Scaling: 64-512+ GPUs

Llama 3 70B optimal config:

  • FSDP across 16 GPUs
  • TP=1, PP=1, DP=16
  • Batch size = 4M tokens (256 micro-batches)

Step 3: Calculate Training Time

The Formula (Simplified)

Training Time = 6 × Parameters × Tokens / (GPUs × TFLOPS × Efficiency)

Where:

  • 6 = FLOPs per parameter per token (forward + backward)
  • TFLOPS = Your GPU's performance (H100 = 989 TFLOPS FP16)
  • Efficiency = 0.3-0.5 for real workloads (communication, CPU, I/O)

Real Examples

GPT-3 175B on 300B tokens:

  • H100 config: 128 GPUs
  • Training time: (6 × 175B × 300B) / (128 × 989 × 0.4) ≈ 77 days
  • Cost at $2/hr/GPU: 128 × 77 × 24 × $2 = $475,584

Llama 2 7B on 2T tokens:

  • H100 config: 8 GPUs
  • Training time: (6 × 7B × 2T) / (8 × 989 × 0.45) ≈ 23 days
  • Cost: 8 × 23 × 24 × $2 = $8,832

Mistral 7B on 1T tokens (efficient):

  • H100 config: 8 GPUs
  • Training time: ~12 days (with optimizations)
  • Cost: ~$4,600

Step 4: Size Your Network

Intra-Node (NVLink/NVSwitch)

For GPUs in the same server:

  • NVLink 4.0: 900 GB/s per GPU (H100/H200)
  • Required for: Tensor Parallelism
  • Rule: TP within a single 8-GPU node

Inter-Node (InfiniBand/RoCE)

For multi-server clusters:

  • 400GbE: $3K/port → Good for <64 GPUs
  • InfiniBand NDR: $8K/port → Best for 64-512 GPUs
  • RoCE v2: $2K/port → Budget option

Llama 3 70B @ 16 GPUs:

  • 2x 8-GPU servers
  • NVLink within each node
  • 400GbE between nodes
  • Bandwidth: 50 GB/s inter-node (sufficient)

GPT-4 @ 512 GPUs:

  • 64x 8-GPU servers
  • InfiniBand NDR mesh
  • Bandwidth: 400 GB/s inter-node
  • Cost: ~$500K for networking alone

Step 5: Storage & Data Pipeline

Training Data Storage

Model SizeDataset SizeStorage TypeBandwidth Needed
7B2TBNVMe10 GB/s
70B5TBNVMe25 GB/s
175B10TBParallel FS50 GB/s

Don't bottleneck on I/O. A $500K GPU cluster waiting on a $5K SSD is tragedy.

Recommended:

  • <16 GPUs: 8x NVMe in RAID 0 (60 GB/s)
  • 16-64 GPUs: Parallel filesystem (WekaFS, BeeGFS)
  • 64+ GPUs: Dedicated storage cluster (Weka, Vast, DDN)

Checkpointing

Save model state every N hours:

  • 7B model: ~28 GB checkpoint
  • 70B model: ~280 GB checkpoint
  • 175B model: ~700 GB checkpoint

Bandwidth: 10-20 GB/s to persistent storage

Step 6: Power & Cooling Budget

Power Requirements

Server ConfigIdleTrainingPeak
8x H100 PCIe2kW3.5kW4kW
8x H100 SXM3kW6.5kW7kW
8x H200 SXM3kW6.5kW7kW
8x B2004kW9kW10kW

64 GPU cluster (8 servers):

  • H100 SXM: 8 × 6.5kW = 52kW
  • Add networking, storage, cooling: 70kW total
  • Monthly power cost @ $0.10/kWh: $5,040

Cooling

  • Air cooling: Up to 5kW/server
  • Liquid cooling: Required for >5kW/server
  • Cost: $50K-$200K for liquid cooling infrastructure

Real-World Cluster Configurations

Startup Config: 8x H100 PCIe

Use case: Llama 2 7B finetuning, small experiments

  • GPUs: 8x H100 80GB PCIe
  • Server: 2x 4U Supermicro
  • Networking: 100GbE
  • Storage: 32TB NVMe
  • Cost: $280K
  • Power: 8kW

Mid-Size: 32x H100 SXM

Use case: Llama 3 70B training, multi-project lab

  • GPUs: 32x H100 80GB SXM
  • Servers: 4x 8-GPU HGX
  • Networking: 400GbE
  • Storage: Weka 100TB
  • Cost: $1.2M
  • Power: 30kW

Enterprise: 256x H200 SXM

Use case: GPT-4 scale training, foundation model development

  • GPUs: 256x H200 141GB SXM
  • Servers: 32x 8-GPU HGX
  • Networking: InfiniBand NDR
  • Storage: Weka 1PB
  • Cost: $12M
  • Power: 250kW

The Honest Sizing Guide

For Finetuning (<10B models):

  • 4-8 GPUs (H100 PCIe or RTX 6000)
  • Budget: $150K-$300K
  • Training time: Days to weeks

For Training Small Models (7-13B):

  • 8-16 GPUs (H100 SXM)
  • Budget: $350K-$700K
  • Training time: 2-4 weeks

For Training Large Models (70B):

  • 16-64 GPUs (H100/H200 SXM)
  • Budget: $1M-$3M
  • Training time: 1-3 months

For Foundation Models (175B+):

  • 128-512 GPUs (H200/B200 SXM)
  • Budget: $8M-$30M
  • Training time: 3-6 months

Don't Make These Mistakes

1. Undersizing Memory → Your 70B model doesn't fit in 8 GPUs. Now you need 16. Oops.

2. Ignoring Networking → 400GbE between 64 GPUs? Enjoy 40% utilization.

3. Cheap Storage → Your $10M GPU cluster is bottlenecked by a $10K NAS.

4. No Redundancy → One GPU dies. Training stops for 2 weeks while you wait for RMA.

5. Wrong GPU Choice → Bought H100 PCIe for multi-GPU training. NVLink would've been 2x faster.

Need Help Sizing Your Cluster?

We've designed GPU clusters from 4 to 512 GPUs. We know the mistakes because we've made them.

Open a quote for a sizing consultation. We'll run your workload analysis and quote a custom configuration.

Request Quote | View GPU Catalog
